ABS

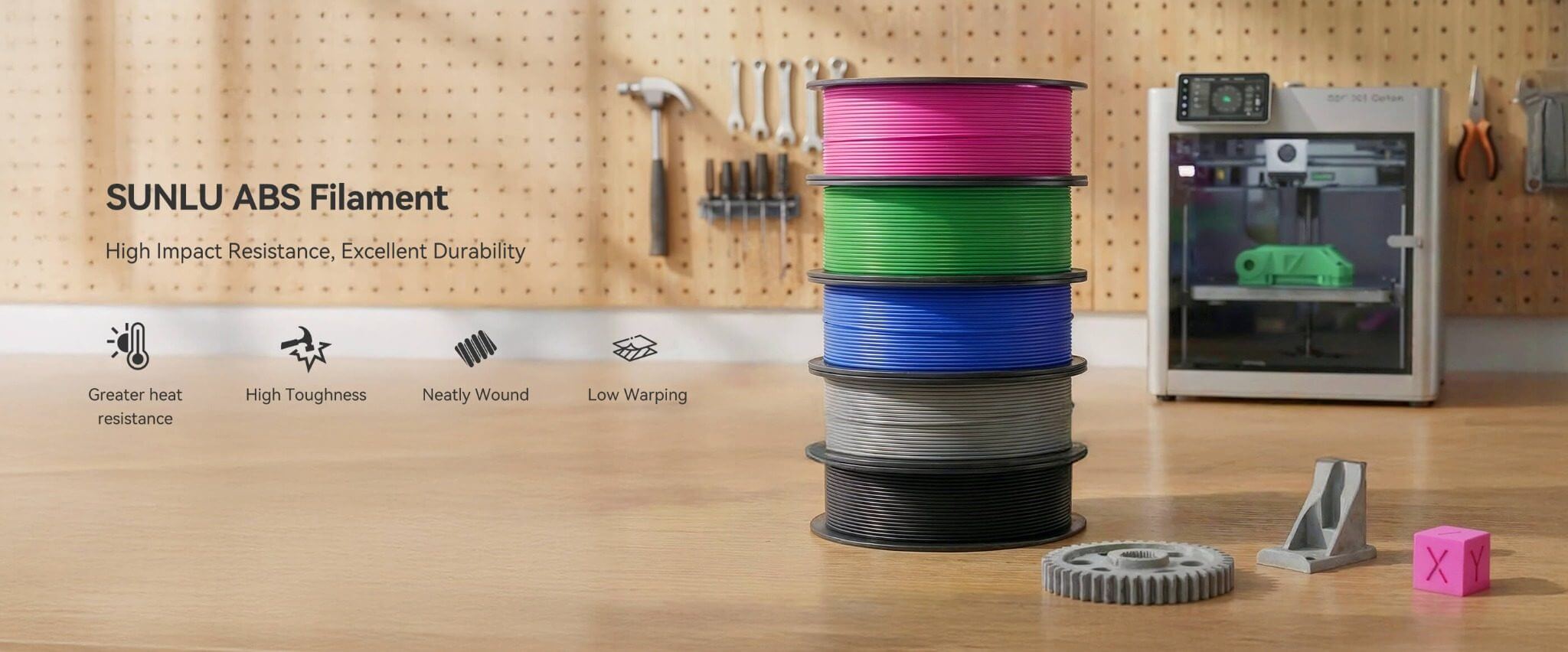

SUNLU ABS provides high strength, heat resistance, and impact resistance, suitable for mechanical parts and industrial prototyping.
Diameter：
Weight：

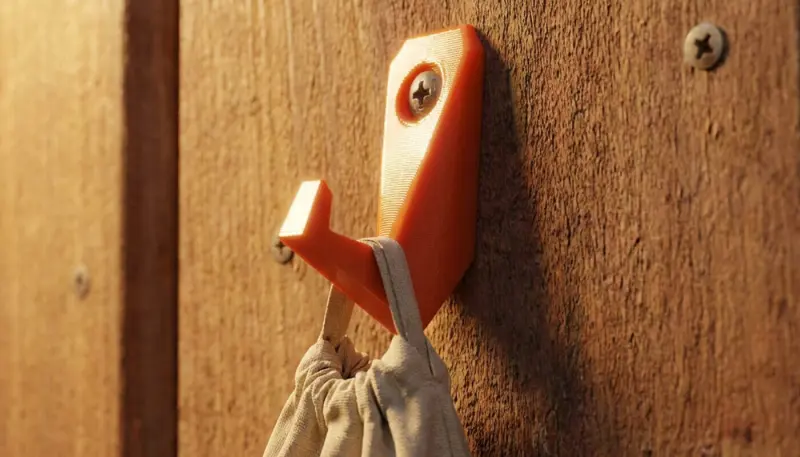

High toughness and impact resistance, ensuring strong and durable printed parts
The material offers excellent toughness and impact resistance, making the printed parts durable and able to withstand significant external impacts, ideal for high-strength use cases.

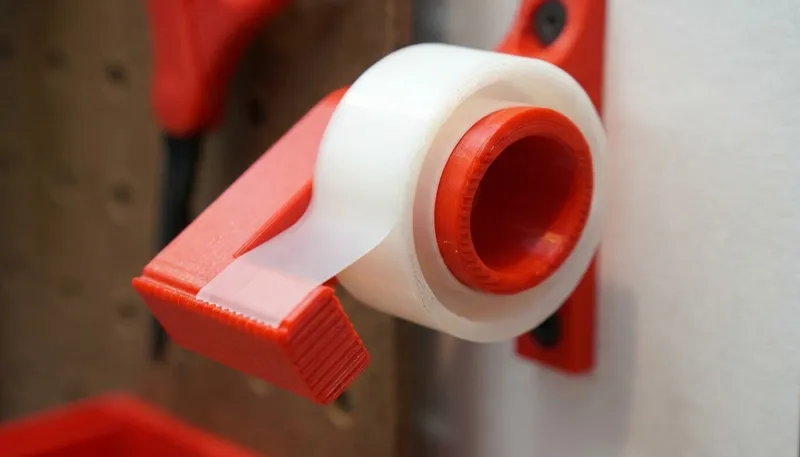

Low shrinkage, delivering high dimensional accuracy
The shrinkage rate is excellently controlled, with minimal deformation during the molding process, resulting in high dimensional accuracy, which meets the stringent tolerance requirements for industrial-grade printing.

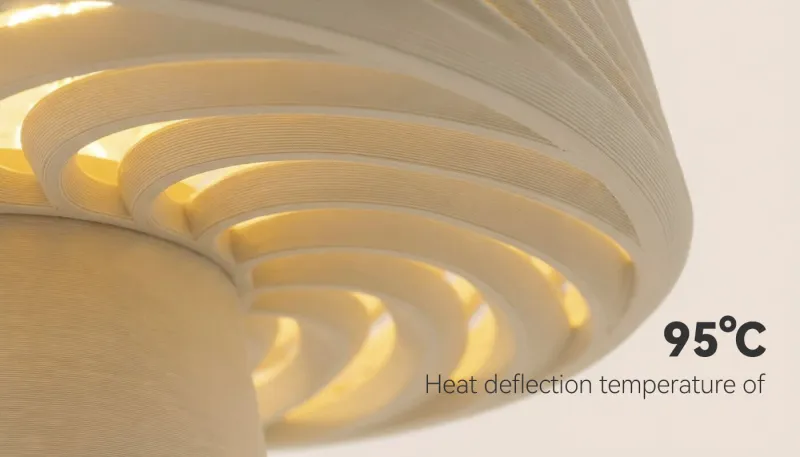

Heat deflection temperature of 95 °C, offering moderate heat resistance for broader applications
The heat deflection temperature reaches 95°C, providing good heat resistance and the ability to withstand high-temperature environments, thus broadening the potential applications of the printed parts.

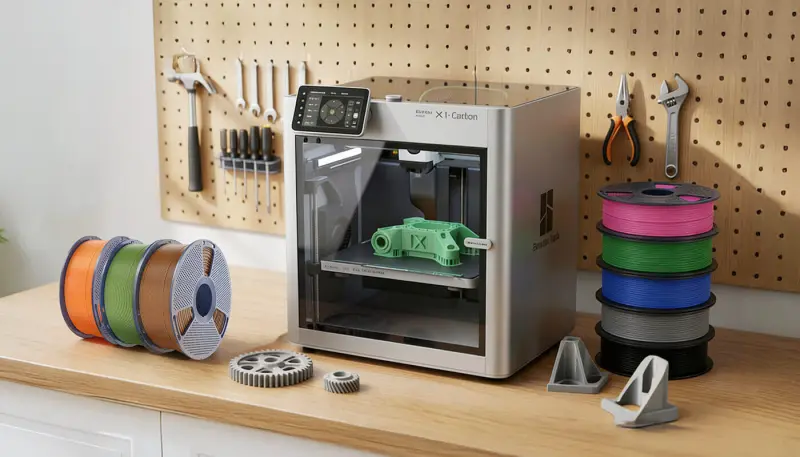

Compatible with 99% of FDM printers on the market
It is widely compatible with mainstream FDM 3D printers on the market. Whether for home-use models or industrial equipment, it ensures stable adaptation, eliminating concerns about compatibility for users.
Parameter Information
| Mechanical Properties | Physical Properties | Print Settings | |||
|---|---|---|---|---|---|
| Tensile Strength（MPa） | 35±5 | Density（g/cm³） | 1.02 | Nozzle Temperature & Print Speed | 250-270℃/50-100mm/s 270-290℃/100-200mm/s |
| Flexural Strength（MPa） | 60±10 | Melt Flow Index（g/10 min） | 20±10 | Bed Temperature | 80-100℃ |
| Notched Izod Impact Strength（kJ/m²） | 15±5 | Shrinkage（%） | 0.4-0.8 | Retraction Distance | 0.8-1.2mm |
| Elongation at Break（%） | 10±5 | Heat Deflection Temperature（℃） | 95±5 | Retraction Speed | 30-40mm/s |
| Shore Hardness（HA/HD） | 85 | Vicat Softening Temperature（℃） | 86 | ||
Color Code
| Color | Hex Code | Display |
|---|---|---|
| Grey | #75787B |  |
| White | #FFFFFF |  |
| Black | #000000 |  |
| Beige | #F0E0D6 |  |
| Red | #BC2726 |  |
| Yellow | #FFF13F |  |
| Green | #1DAA27 |  |
| Cyan | #00A3E0 |  |
| Gold | #BDA261 |  |
| Silver | #888F98 |  |
| Magenta | #C52E79 |  |
| Coffee Brown | #362111 |  |
| Sunny Orange | #ED7334 |  |
| Olive Green | #5A6D3D |  |
| Klein Blue | #1729AB |  |
