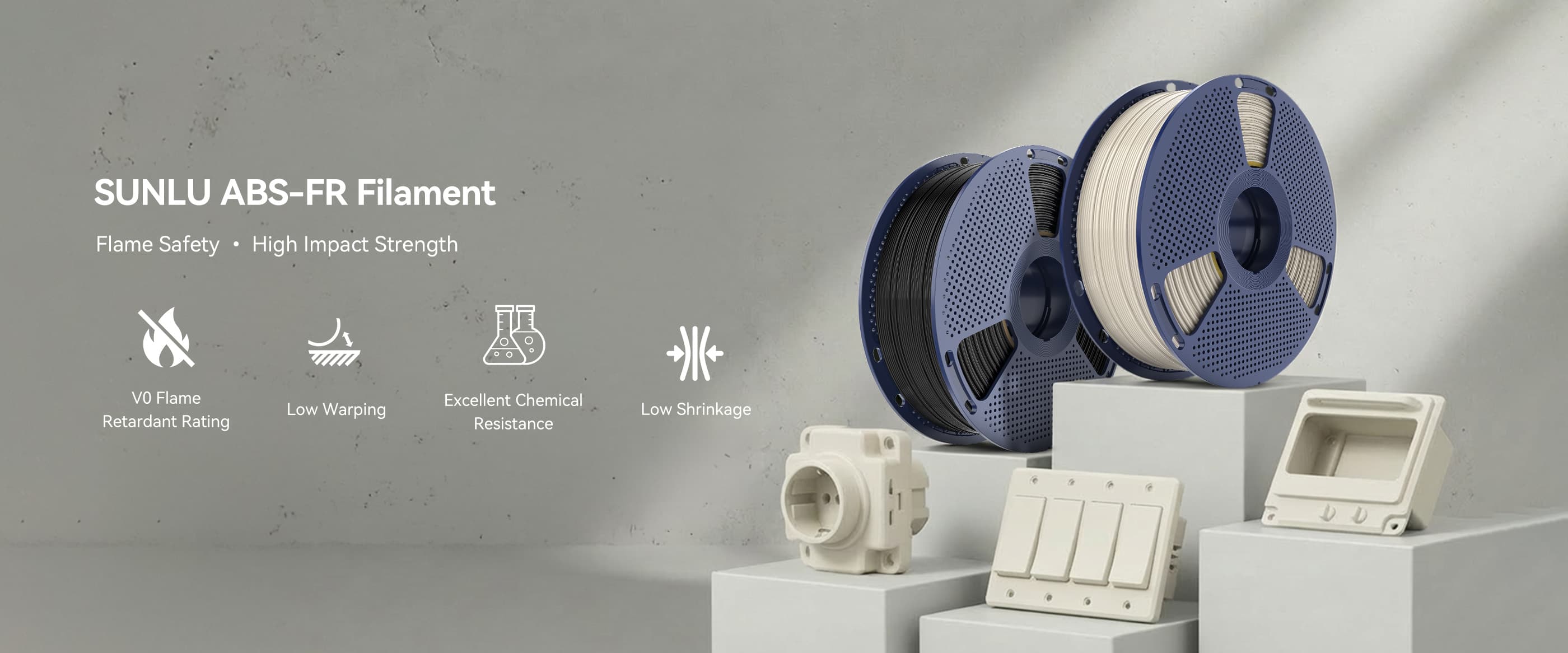

ABS-FR
SUNLU ABS-FR features V0 flame-retardant performance while maintaining strong mechanical properties and dimensional stability for safety-critical applications.
Diameter：
Weight：
SUNLU ABS-FR
V0-level flame retardant

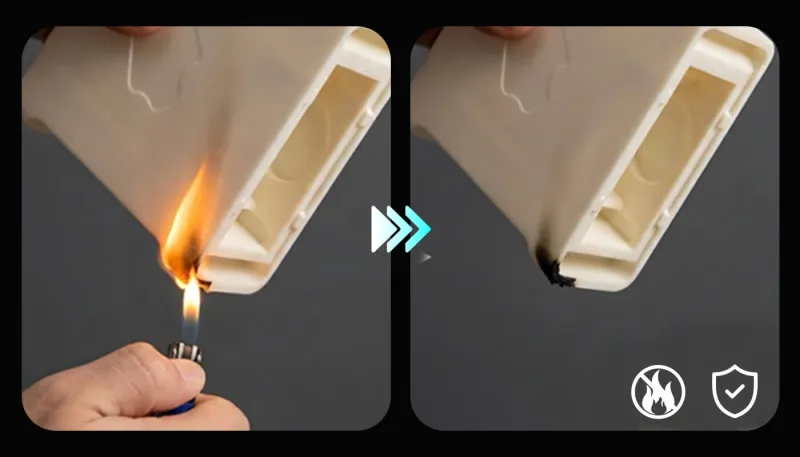

V0-level flame retardant, combining safety and performance
This filament has undergone rigorous flame-retardant performance testing and meets V0 grade standards. It self-extinguishes quickly upon flame contact, greatly reducing safety risks during use. Users can print functional parts for household, office, or educational applications without worrying about material flammability, all while maintaining the mechanical properties and appearance quality of the printed parts. Offering both safety and high performance, this material is particularly well-suited for engineering and daily applications with high safety requirements.
Good impact strength, prints are resistant to breaking and damage
The filament has excellent toughness and impact resistance. Even when printed parts are dropped, compressed, or lightly impacted during use, they maintain their integrity and are not easily broken. Whether for functional mechanical components, protective casings, children's models, or educational tools, it provides reliable strength. This feature not only enhances the durability of printed items but also boosts user confidence in the material, ensuring that works can withstand real-world use.

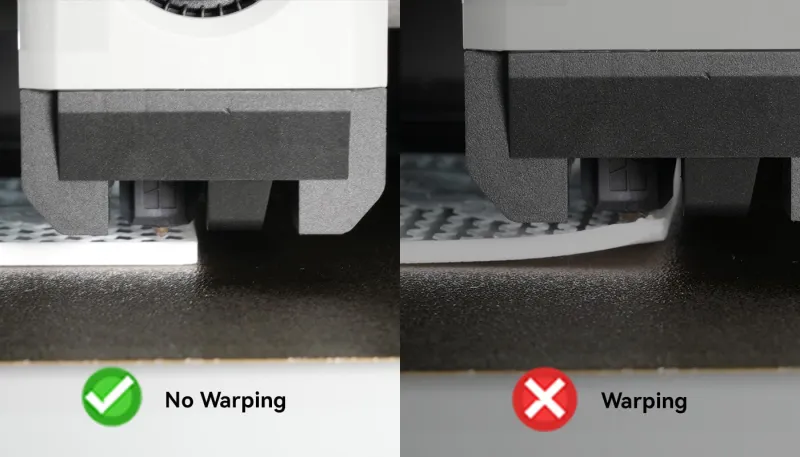

Low warping, prints maintain dimensional stability and resist cracking
With an optimized formula and process control, even larger or more complex prints can maintain a flat bottom surface and even shrinkage, reducing the risk of warping and cracking. Users can achieve high-precision, dimensionally stable finished products without needing frequent printer adjustments or additional support structures. Whether for precise models, functional parts, or display pieces, consistent print results are guaranteed, improving work efficiency and material utilization.

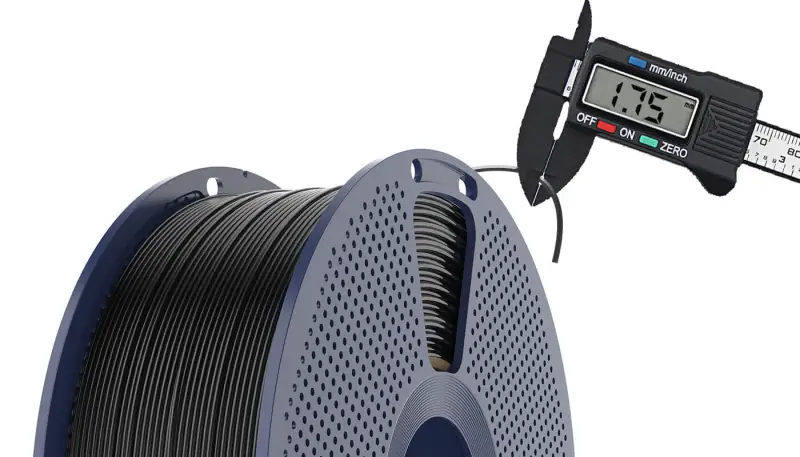

1.75 ± 0.02 mm diameter tolerance, high printer compatibility
The filament diameter is strictly controlled within a 1.75±0.02mm tolerance range, with each meter measured precisely to ensure uniformity and stability. This high-precision diameter ensures smooth feeding into the melting nozzle, reducing clogging and filament breakage, and improves the dimensional accuracy and surface finish of printed parts. Whether printing precise models or functional components, each print is stable and reliable, providing users with a high-quality, predictable printing experience.
Parameter Information
| Mechanical Properties | Physical Properties | Print Settings | |||
|---|---|---|---|---|---|
| Tensile Strength（MPa） | 31.4±4 | Density（g/cm³） | 1.15 | Nozzle Temperature & Print Speed | 240-250℃/50-100mm/s 250-260℃/100-200mm/s |
| Flexural Strength（MPa） | 55±5 | Melt Flow Index（g/10 min） | 28.6±3 | Bed Temperature | 80-100℃ |
| Notched Izod Impact Strength（kJ/m²） | 13.7±3 | Shrinkage（%） | 0.4-0.9 | Retraction Distance | 0.8-1.2mm |
| Elongation at Break（%） | 11.6±2 | Heat Deflection Temperature（℃） | 90.5±3 | Retraction Speed | 30-40mm/s |
| Shore Hardness（HA/HD） | 79 | Vicat Softening Temperature（℃） | \ | ||
