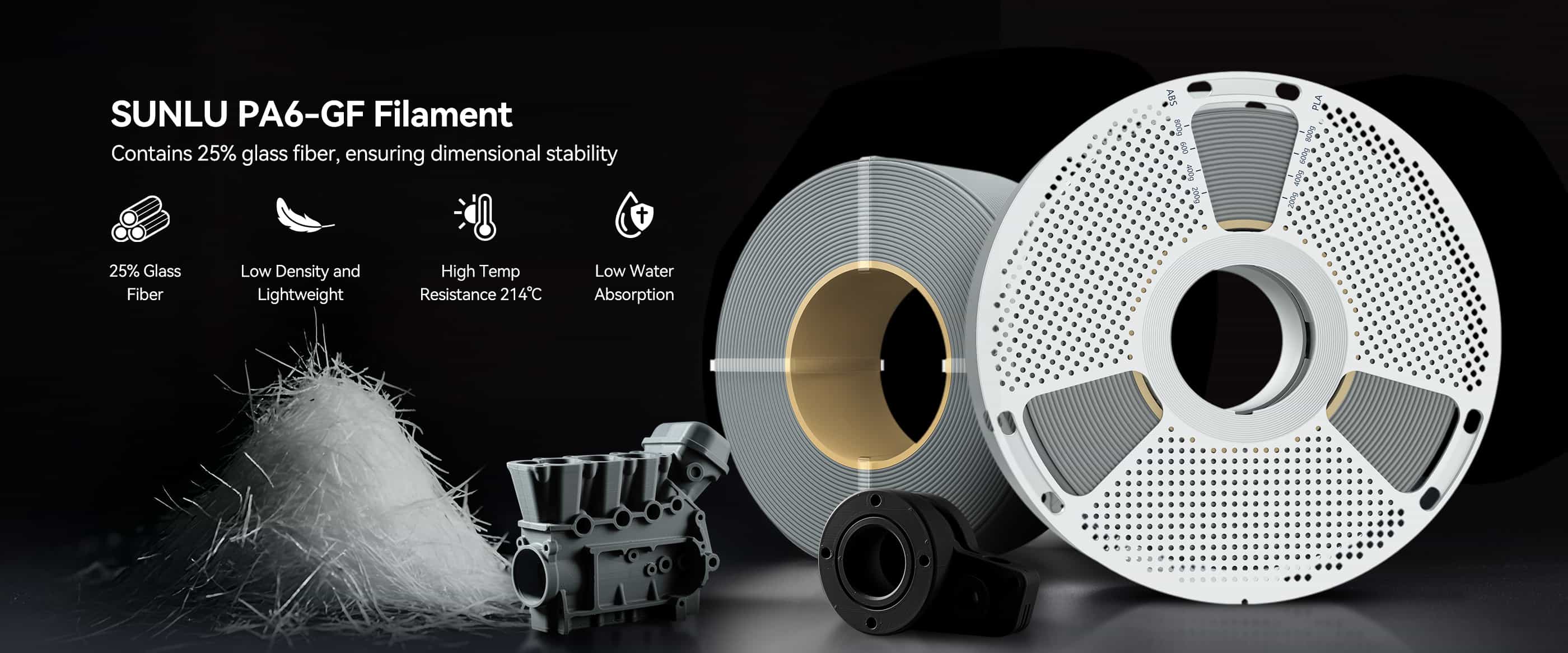

PA6-GF
SUNLU PA6 Glass Fiber (PA6-GF) is a glass fiber reinforced nylon material with high strength and excellent wear resistance, maintaining good structural stability even under harsh operating conditions.
Diameter：
Weight：

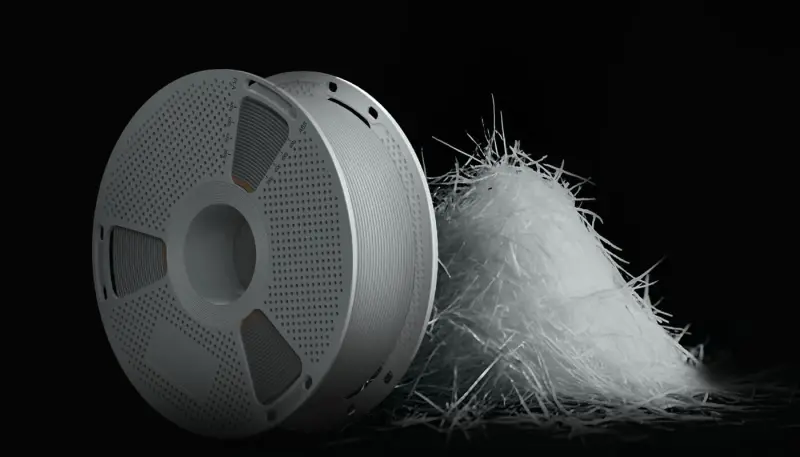

Contains 25% glass fiber, ensuring excellent dimensional stability of printed parts
This filament incorporates 25% high-strength glass fiber, greatly enhancing the dimensional stability of printed parts. Whether printing large-scale models or complex structural components, the material maintains uniform shrinkage during printing, minimizing warping and deformation. Users can achieve flat and precise finished parts without frequent parameter adjustments, significantly improving printing success rates while saving material and time costs. It is especially suitable for engineering applications and functional parts that require high precision and stability.

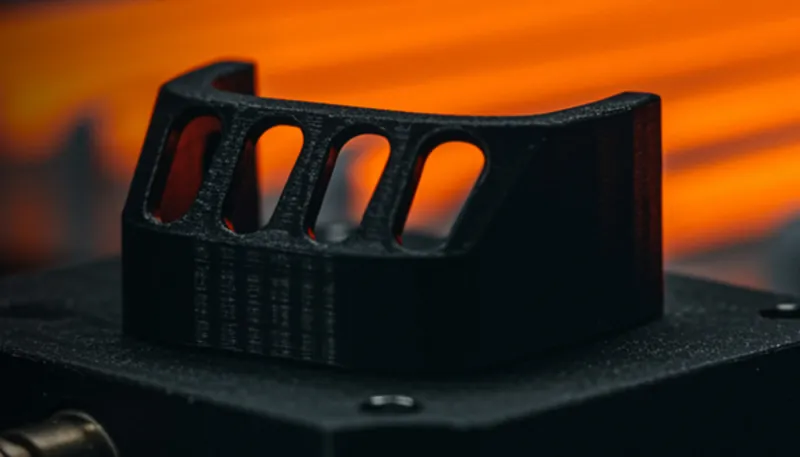

Heat deflection temperature up to 214°C, maintaining excellent stability in harsh high-temperature environments
With a heat deflection temperature of up to 214°C, this material maintains excellent structural and dimensional stability even under high-temperature conditions. Whether used for functional components operating in high-temperature environments or mechanical parts exposed to continuous heat sources, it ensures reliable performance without degradation. Users can confidently print high-temperature application models such as electronic housings, engine components, and industrial tools, ensuring durability and reliability even under demanding conditions.
Ultra-high strength, highly resistant to drops and impacts
The material features extremely high strength and toughness, allowing printed parts to resist cracking when subjected to impacts, compression, or drops. Whether used for mechanical structures, functional components, or models exposed to daily wear and stress, the printed parts maintain excellent integrity and extended service life. This combination of high strength and durability provides greater reliability and confidence in real-world applications.

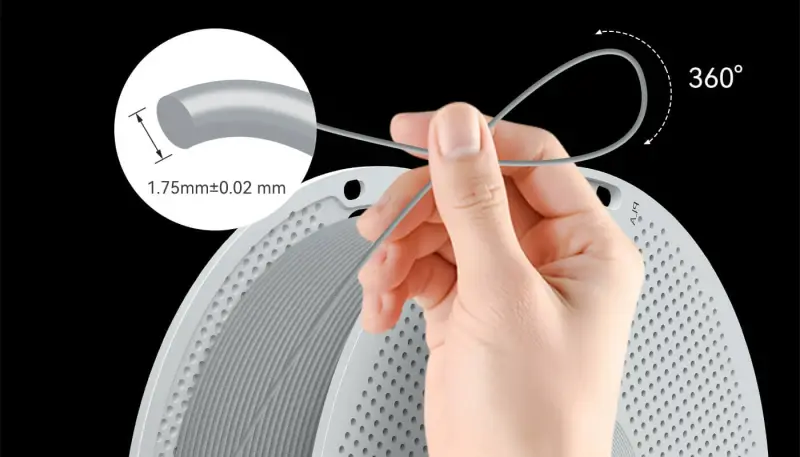

1.75±0.02mm filament diameter, providing high equipment compatibility
The filament diameter is strictly controlled within a 1.75±0.02mm tolerance range, ensuring consistent quality throughout the entire spool. The precise diameter allows smooth nozzle feeding, reducing clogging and filament breakage. At the same time, high-precision control improves dimensional accuracy and surface finish of printed models, ensuring refined and reliable results. This precision design enables stable performance across various printing tasks and enhances the overall printing experience.
Parameter Information
| Mechanical Properties | Physical Properties | Print Settings | |||
|---|---|---|---|---|---|
| Tensile Strength（MPa） | 89±8 | Density（g/cm³） | 1.269 | Nozzle Temperature & Print Speed | 270-290℃/＜130mm/s |
| Flexural Strength（MPa） | 176±8 | Melt Flow Index（g/10 min） | 12.2±3 | Bed Temperature | 60-70℃ |
| Notched Izod Impact Strength（kJ/m²） | 10.5±2.5 | Shrinkage（%） | \ | Retraction Distance | 0.8-1.2mm |
| Elongation at Break（%） | 12.5±3 | Heat Deflection Temperature（℃） | 205.2±3 | Retraction Speed | 30mm/s |
| Shore Hardness（HA/HD） | 82.5 | Vicat Softening Temperature（℃） | \ | ||
Color Code
| Color | Hex Code | Display |
|---|---|---|
| Grey | #6E7174 |  |
| Black | #000000 |  |
